Description
5MP 4CH COLOUR AT NIGHT 1 CAMERA WHITE AUDIO MIC BUILT KIT
What Include:

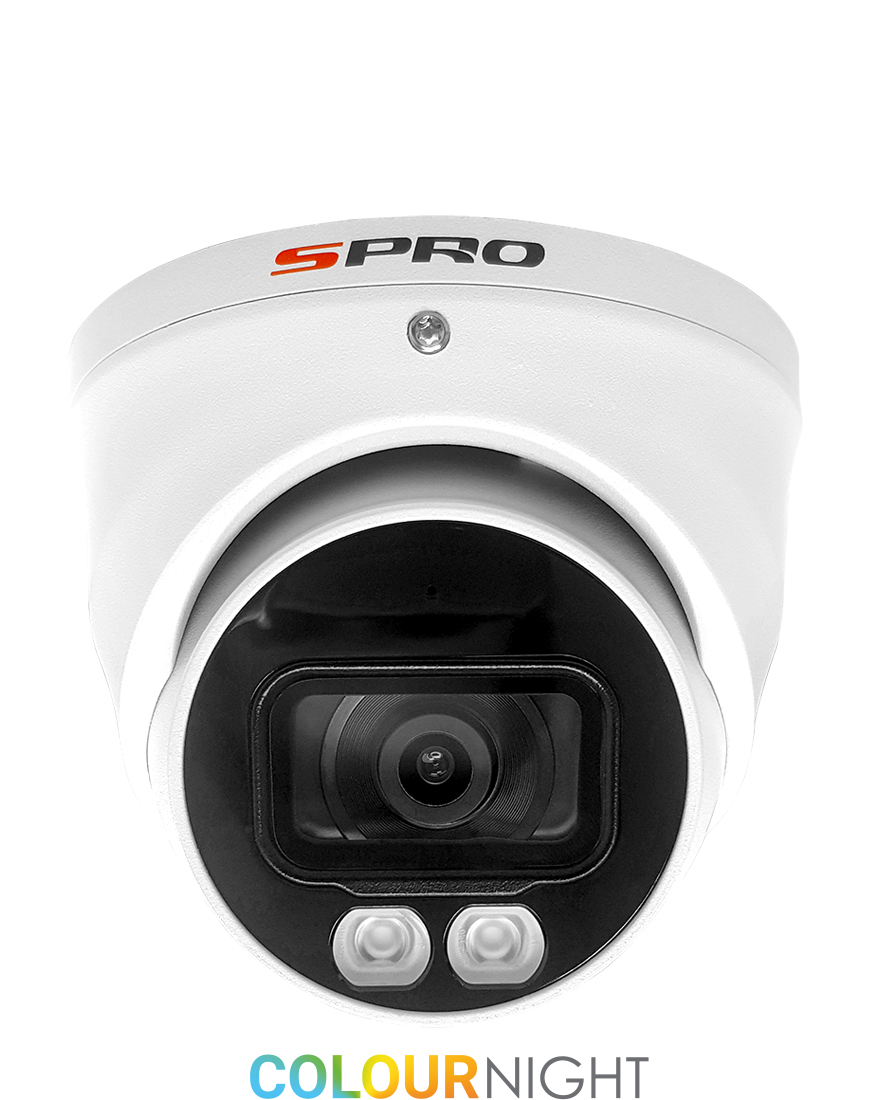

- 1 x 5MP SPRO colour night cameras in white 3.6mm – DHD50/36LW/40M-4-M
- 1x 18m BNC readymade cable for each camera selected
- 1 x 5A 4 Way In-line PSU
- 1x 2m HDMI cable
- 1 x DVR Power supply (3PIN UK TYPE) & mouse
What Else You Might Need?
This is a complete system, if you do not select an HDD then there will be no recording, its highly recommend you select an HDD unless you have your own. A monitor is needed to view the CCTV however you can use a smart TV or connect to the internet and view on your smart device or PC. To connect to the internet and view online you will also need a LAN cable to connect the DVR to your Internet router or use a powerline adaptor. Also, the cameras are waterproof and outdoor however like all CCTV cameras the connection to the cable is not waterproof. For outdoor use you might need a junction box or a deep base, see the camera spec sheet for the correct bases. We sell the bases and junction boxes too, please message is or visit our shop for more information. Also, you might want to add different cameras on to this DVR, no problem this DVR can handle TVI, CVI, AHD and CVBS (analogue) cameras up to 5MP.
Warranty:
All cameras and recording devices (NVR’s/DVR’s) are covered by a 1 year warranty.
INFORMATION:
The SPRO B3 recorders can record up to 8MP when in CVI mode, 5MP when using TVI or 2MP when using AHD. The extra IP channels will also be recorded at 8MP. They also have advanced features such as face detection and tripwire. As standard the B3 range of DVRs support audio over co-ax, alarm over co-ax, IP audio over CAT5e, 4K video over co-ax and PTZ control over co-ax meaning less cabling for you.
Top of Form
| Specifications: | |
| Model Number | DHDVR06-B3-V2 |
| Main Processor | Embedded processor |
| Operating System | Embedded LINUX |
| Video & Audio | |
| Input | 6 channel (4 x BNC + 2 x IP) |
| Standard – BNC | 4 channel CVI/TVI/AHD/ANALOGUE |
| Standard – IP | 2 channel (up to 8 Megapxiel IP) |
| Analog Camera Input | 4 Channel, BNC |
| HDCVI Camera | 4K@7fps, 6MP@10fps, 5MP@12fps, 4MP@15fps, 1080P/720P@25fps |
| AHD Camera | 1080P/720P@25fps |
| TVI Camera | 5MP@12fps, 4MP@15fps, 1080P/720P@25fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 2 Channel, each channel up to 8MP (4K@7fps, 6MP@10fps, 5MP@12fps, 4MP@15fps, 1080P/720P@25fps) |
| Audio In/Out | 1/1 RCA, Audio over co-ax supported on all BNC Channels |
| Two-way Talk | Reuse audio in/out, RCA |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution HDMI | 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 |
| Resolution VGA | 1920×1080, 1280×1024, 1280×720 |
| Display Split | 1/4/6 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Video/Audio Compression | H.265+/ H.265/ H.264+/ H.264 |
| Resolution | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Record Rate – Main Stream | 4K(7fps),5MP(12fps),4MP/3MP(15fps),1080P/ 720P/ 960H/ D1/ CIF/ QCIF (25fps) |
| Record Rate – Extra Stream | 960H (1~12fps), D1/ CIF/ QCIF (1~25fps) |
| Bit Rate | 32Kbps~6144Kb/s |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Audio Compression | AAC(only for the 1st channel), G.711A, G.711U, PCM |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Video Detection | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Playback & Backup | |
| Sync Playback | 1/4 |
| Search Mode | Time/Date, MD & Exact search (accurate to second) |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device/Network |
| Network | |
| Ethernet | RJ-45 port (100M) |
| Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android Phone |
| Interoperability | ONVIF 2.42, CGI Conformant |
| Storage | |
| Internal HDD | 1 SATA port, up to 8TB |
| Auxiliary Interface | |
| USB Interface | 2 ports(1 Rear), USB2.0 |
| RS485 | 1 port, For PTZ Control |
| General | |
| Power Supply | DC12V/2A |
| Power Consumption | <10W (without HDD) |
| Working Environment | -10°C ~+55°C / 10%~90%RH |
| Dimensions | Compact 1U, 260mm × 220mm × 40mm |
| Weight | 1.6KG(without HDD) |
Camera Specification:
| Specifications: | |
| Model Number | DHD50/28LW/20M-4-M |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 2592 (H) × 1944 (V), 5MP |
| Electronic Shutter Speed | 1/25~1/100000s |
| S/N Ratio | More than 65dB |
| Min. Illumination | 0.02Lux/F1.2, 0Lux White Light on |
| Fill Light (White Light) Distance | Distance up to 20m |
| Fill Light On/Off Control | Auto/ Manual |
| Fill Light Number | 1 |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max Aperture | F1.2 |
| Angle of View | H: 129°, V: 98° |
| Iris Type | Fixed iris |
| Close Focus Distance | 1.6 m |
| DORI Distance | Detect: 63.0 m Observe: 25.0 m Recognize: 13.0 m Identify: 6.0 m |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan:0˚~360˚ / Tilt: 0° ~ 180° / Rotation: 0° ~ 360° |
| Video | |
| Video Frame Rate | CVI: PAL: 5M@20fps, 4M@25fps, 1080P@25fps; AHD: PAL: 5M@20fps, 4M@25fps; TVI: PAL: 5M@20fps, 4M@25fps; CVBS: PAL: 960H |
| Resolution | 5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480) |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| Smart Light | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Interface | |
| Audio Interface | Built-in mic |
| Port | |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| General | |
| Power Supply | DC12V±30% |
| Power Consumption | Max 3.0W (12V DC, white light on) |
| Operating Conditions | -40°C ~ +60°C / Less than 95% RH |
| Strorage Conditions | -40°C ~ +60°C / Less than 95% RH |
| Protection Grade | IP67 |
| Casing | Metal + Plastic |
| Dimensions | φ85.5 mm × 109 mm |
| Net Weight | 0.24kg |
| Gross Weight | 0.37kg |
